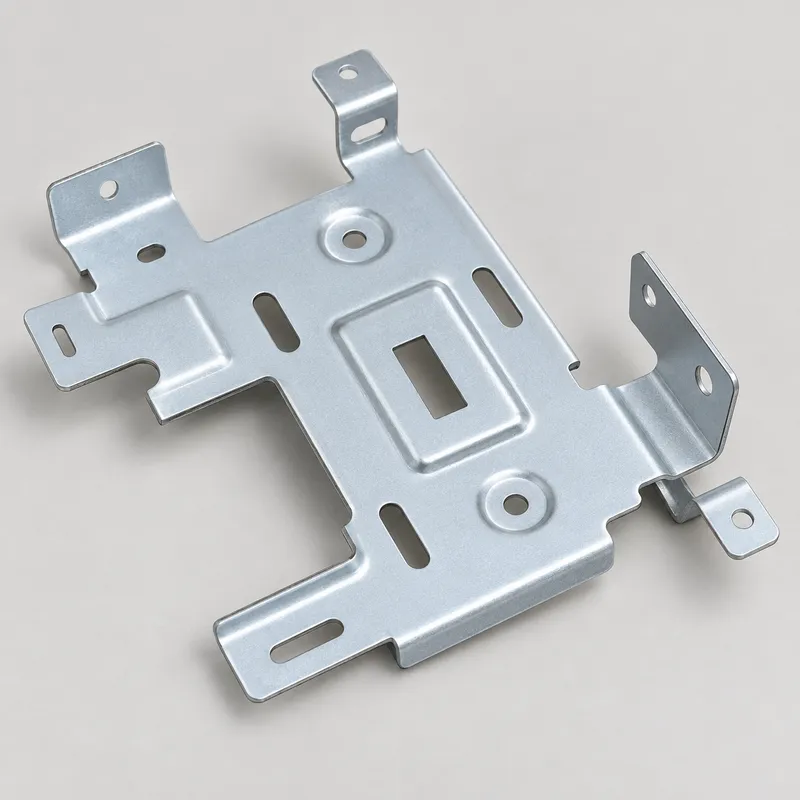

Custom Sheet Metal Bracket Prototype for Electronic Equipment

More Than a Simple Bent Metal Part

Although the bracket is manufactured from a single sheet, its geometry includes several functional features.

The large base provides the main supporting surface. Elongated slots allow limited adjustment during equipment assembly, while round holes are used for locating or fastening. The embossed areas improve local rigidity and provide clearance for internal components. Multiple bent tabs connect the bracket to the surrounding enclosure or frame.

These features must align correctly after forming. A small deviation in bend position or flange angle may cause interference with the housing, screws or electronic components during assembly.

For this reason, the part was treated as a functional sheet metal prototype rather than only a cosmetic sample.

A Practical Process for 15 Prototype Parts

The customer needed a small batch for product verification, so full production tooling was not necessary at this stage. YS RAPID reviewed the 3D model and 2D drawing to evaluate the material thickness, bend sequence, hole locations and formed features.

The fabrication process included:

1. Cutting the flat sheet profile

2. Producing holes and elongated mounting slots

3. Forming the embossed reinforcement areas

4. Bending the side flanges and mounting tabs

5. Checking the finished geometry before coating

6. Applying the specified powder-coated finish

Planning the correct operation sequence was important. Some bends could restrict access to nearby features if completed too early. The forming and bending steps therefore had to be arranged around the actual part geometry.

Key Inspection Points

For an electronic equipment bracket, successful assembly depends on the relationship between multiple features rather than one individual dimension.

Inspection focused on:

· Hole and slot positions

· Bend angles and flange heights

· Orientation of the mounting tabs

· Flatness of the main supporting surface

· Position of the embossed features

· Clearance around fastening areas

· Overall fit with the mating components

This helps reduce the risk of misalignment when the customer installs the brackets into the test equipment.

Powder Coating for Protection and Appearance

After the sheet metal fabrication was completed, the steel parts were cleaned and powder coated.

Powder coating provides a durable protective layer and gives the brackets a uniform finish suitable for use inside electronic equipment. Coating control is also important around holes, slots and mating surfaces. Excessive coating buildup may affect screw installation or reduce assembly clearance.

Critical contact areas can be masked when required by the drawing or assembly conditions.

Rapid Sheet Metal Prototyping at YS RAPID

YS RAPID supports engineers who need realistic metal parts for product development, assembly trials and pre-production testing. Our sheet metal prototyping services are suitable for custom brackets, chassis panels, covers, mounting plates and equipment enclosures.

Available capabilities include:

· Rapid sheet metal cutting

· Punching and custom hole patterns

· Precision sheet metal bending

· Embossing and formed features

· Welding and hardware installation

· Powder coating and other surface finishes

· Prototype inspection and trial assembly

· Low-volume sheet metal production

By managing fabrication, finishing and inspection through one project team, we help customers receive parts that are ready for assembly and engineering evaluation.

Custom Sheet Metal Parts for Product Development

If you need sheet metal prototypes or a small production batch for electronic equipment, send us your 3D files, 2D drawings, material requirements and surface finish specifications.

YS RAPID can review the design, identify potential bending or assembly risks, and provide a practical manufacturing plan for your prototype project.
