The Drawing Relationships Matter More Than the Shape Alone

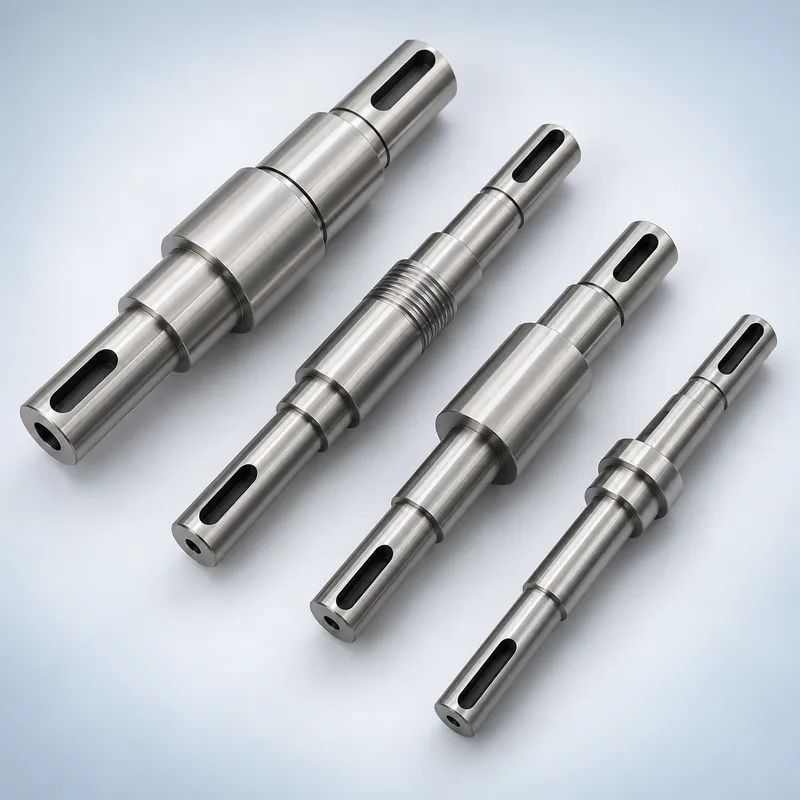

This is not simply a bar turned to several diameters. Each section may perform a different function in the assembly. One diameter may locate a sleeve or bearing, a shoulder may establish axial position, and an end slot may transmit movement or connect with another component.
That means an individual dimension can pass inspection while the shaft still fails to assemble if the relationships between features are not controlled. Before quoting, we review the datum system, fits, concentric features, shoulder distances and angular position of the milled slots. We also compare the 2D drawing with the 3D model and raise questions before material is cut.
This technical review gives the customer a more reliable quotation. It also prevents assumptions about unspecified tolerances, edge breaks, surface condition or slot orientation from becoming production problems later.
Turning and Milling in One Coordinated Process
CNC turning is used to establish the shaft axis, stepped diameters and shoulders. Driven tooling then machines the elongated slots and any specified flats or cross-features.
Reducing secondary setups is important for this type of component. If the shaft is repeatedly removed, re-clamped and aligned on separate machines, each transfer introduces another source of variation. Turn-mill machining helps maintain the relationship between the turned centerline and the milled features while also shortening handling time.
The final process depends on the drawing rather than the photograph alone. Stainless steel grade, dimensional tolerances, surface finish and annual demand all influence machine selection, tooling and cycle time. Our quotation therefore states the technical basis clearly instead of offering a price built on unconfirmed assumptions.
Keeping 500 Sets Consistent
An approved first piece does not guarantee an acceptable production batch. During manufacture, we focus on the points most likely to affect assembly and repeat use.
Diameter and Shoulder Control
Cutting tools gradually wear during stainless steel machining. We monitor the relevant dimensions during production and adjust offsets when required. Shoulder locations are checked together with the diameters because accumulated axial variation may change the fitted position of the shaft.
Concentricity of Stepped Sections
Where two or more diameters must share the same working axis, the setup and machining sequence are planned around that relationship. The actual inspection scope follows the tolerances and datum references defined on the customer drawing.
Slot Position and Edge Condition
The end slots are treated as functional interfaces. Their width, depth, length and orientation may determine whether a pin, lever or mating part fits correctly. After milling, edges are deburred without removing unnecessary material from functional surfaces.
In-Process and Final Checks
Initial pieces are checked before the full batch proceeds. Production inspections then help identify tool wear or process movement before it affects a large quantity. Finished shafts receive dimensional and visual inspection, followed by protected packing to reduce contact marks during transport. An inspection report for agreed critical dimensions can be provided when specified at the quotation stage.
A Purchasing Decision Based on More Than Unit Price
For many Italian industrial companies, especially owner-managed machinery businesses, a useful supplier must do more than return a low price. The supplier should understand the drawing, answer technical questions directly, respect the agreed schedule and remain dependable when the same component is ordered again.
Our RFQ review connects commercial and technical information. The quotation can identify the material grade, drawing revision, manufacturing route, finishing requirement, inspection scope, estimated lead time and packing basis. If a design revision changes tooling or machining time, we explain the effect before production continues.
This makes it easier for the buyer to compare the complete supply risk rather than price alone. A slightly lower unit cost offers little value if unclear specifications lead to rework, delayed assembly or inconsistent repeat orders.
One Contact from RFQ to Shipment
YS Rapid coordinates material sourcing, CNC turning, milling, deburring, optional surface treatment, inspection and export packing. The customer does not need to manage separate turning and milling suppliers or resolve responsibility between different subcontractors.
The project begins with the 2D drawing, 3D model, stainless steel grade, quantity and target delivery date. Information about mating parts is also useful when a diameter, slot or shoulder has a specific assembly function. After technical points are agreed, we confirm the production route and move from initial-part verification into batch machining.
Our role is to make the project easier to control: one drawing revision, one communication channel and one supplier responsible for the finished shaft.
Stainless Steel Shaft Machining from YS Rapid
We provide stainless steel turning services for custom shafts, pins, sleeves, bushings and other cylindrical industrial parts. Depending on component diameter, length, feature complexity and order volume, production may use CNC turning, turn-mill machining or Swiss-type machining.
This service is suitable for buyers who need more support than a catalogue-part supplier can offer. Every component is made to the customer’s drawing, with the process planned around its actual assembly requirements.
Request a Manufacturing Review
Send your 2D drawing and 3D file together with the stainless steel grade, order quantity, critical tolerances, finish and required delivery date. We will review the turning and milling features before preparing the quotation.
YS Rapid supports custom stainless steel shaft machining from technical review through batch production and export delivery.
